Tribal Assessment |
|

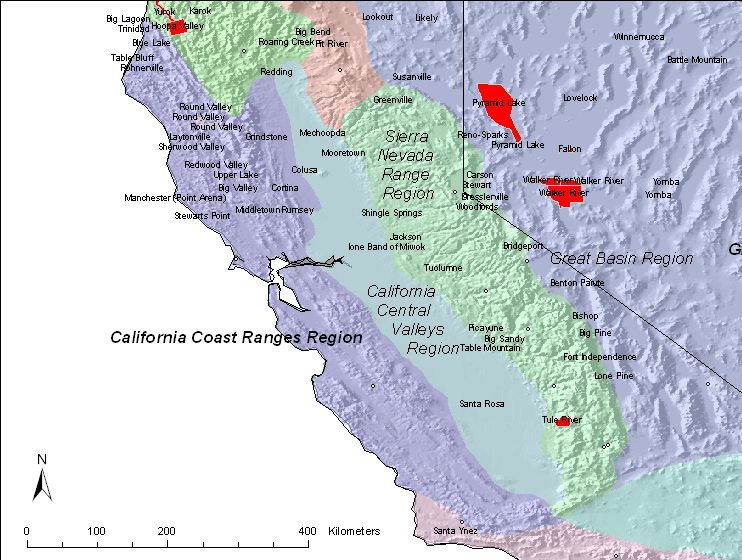

The California Coastal Ranges Region |
|
| Since we wanted to
statistically derive a correlation matrix for each region, we needed at
least four sites to in the correlation. There are three sites within
the region: PORE1, PINN1 and RAFA1. Based on proximity, terrain, and precipitation, we choose

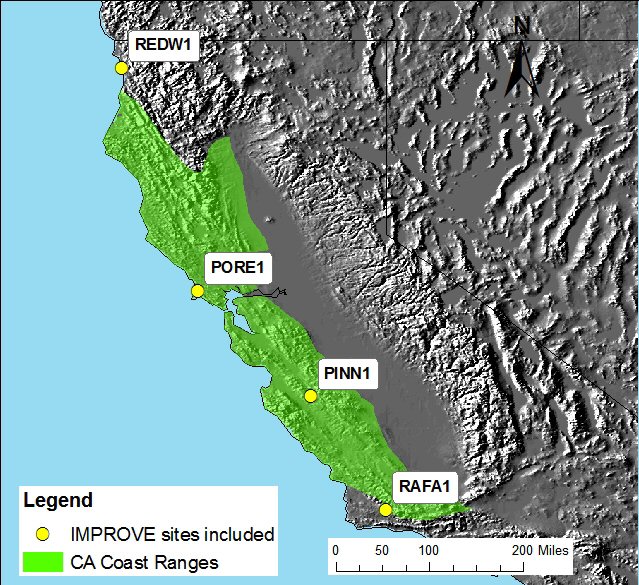

to include REDW1 in the correlation. IMPROVE and IMPROVE
protocol sites used in this analysis are shown in this
map. |
|
| The details of the
correlation analysis are provided in tabular format below. The
Representative Distance (Rep. Dist.) is 239 km for this region.
Representative distances were based from exponential curve fits to the
correlation verses
distance curves. |
| Region |
|
Sulfate |
NO3 |
OMC |
LAC |
Soil |
CM |
Rep. Dist. |
| California Coast Ranges |
Distance (km) |
353.9 |
210.8 |
32.4 |
130.3 |
83.3 |
303.5 |
|
| |
Average (Mm-1) |
11.0 |
7.2 |
5.2 |
1.6 |
0.4 |
3.7 |
|
| |
Weighting |
0.379 |
0.247 |
0.178 |
0.057 |
0.012 |
0.126 |
|
| |
Weighted Dist. (km) |
134.2 |
52.0 |
5.8 |
7.4 |
1.0 |
38.3 |
239 |
|

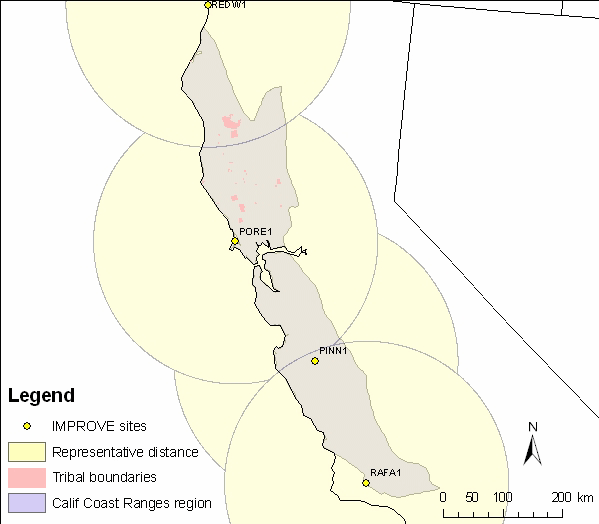

| Based on the representative
distance of 239 km, all of the tribal areas in the region are represented by
an IMPROVE or IMPROVE protocol site as shown in this
summary map. |
|
 |
|
|
|
|
