Tribal Assessment |
|
The Klamath Mountain Region |
|
| Since we wanted to
statistically derive a correlation matrix for each region, we needed at
least four sites to in the correlation. There are only three sites within
the region based on the physiographic boundaries. Based on proximity, terrain, and precipitation, we choose

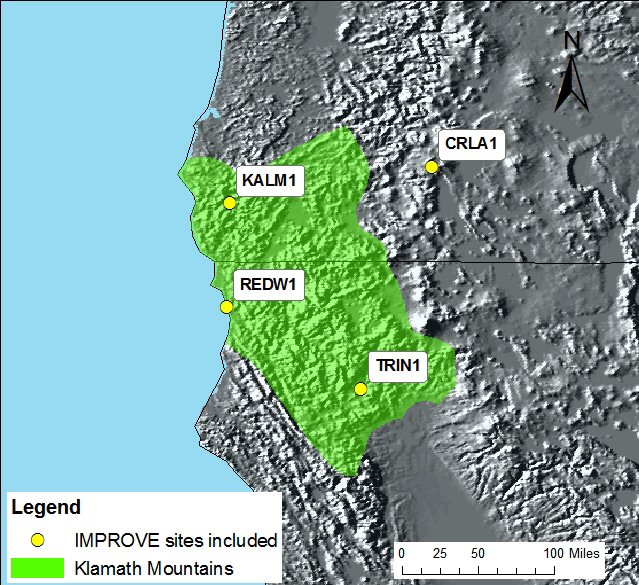

REDW1 to include in the correlation in this region. IMPROVE and IMPROVE
protocol sites used in this analysis are shown in this
map. |
|
| The details of the
correlation analysis are provided in tabular format below. The
Representative Distance (Rep. Dist.) is 101 km for this region.
Representative distances were based from exponential curve fits to the
correlation verses
distance curves. |
|
| Region |
|
Sulfate |
NO3 |
OMC |
LAC |
Soil |
CM |
Rep. Dist. |
| Klamath Mountains |
Distance (km) |
141.3 |
40.8 |
105.7 |
62.5 |
120.2 |
31.5 |
|
| |
Average (Mm-1) |
6.8 |
2.3 |
8.0 |
2.0 |
0.3 |
1.6 |
|
| |
Weighting |
0.326 |
0.110 |
0.382 |
0.094 |
0.013 |
0.075 |
|
| |
Weighted Dist. (km) |
46.1 |
4.5 |
40.4 |
5.9 |
1.6 |
2.4 |
101 |
|
|

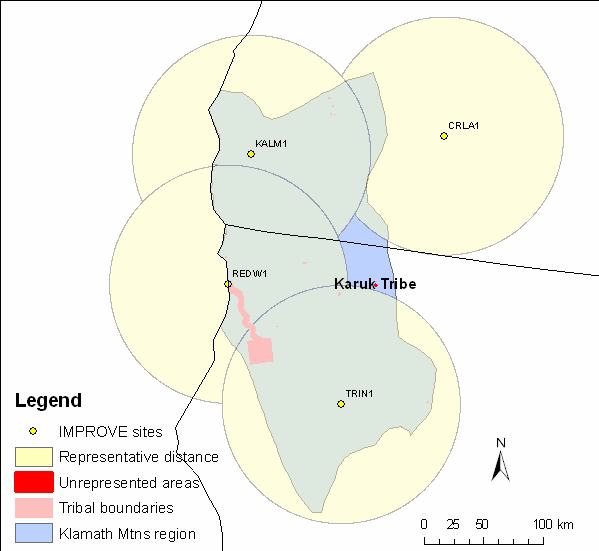

| Based on a representative
distance of 101 km, one tribal area in the region are not represented by
an IMPROVE or IMPROVE protocol site as shown in this
summary map. |
|
 |
|
|
|
The following Class I areas are in the Klamath Mountain region: |
|
Kalmiopsis |
|
Marble Mountain |
|
Redwood NP |
|
Yolla Bolly |
|
|
