Since we wanted to
statistically derive a correlation matrix for each region, we needed at
least four sites to in the correlation. There are six sites within

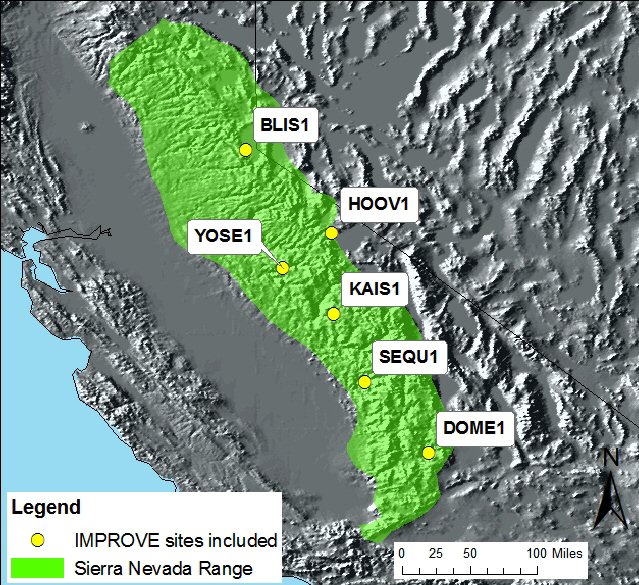

the region based on the physiographic boundaries. IMPROVE and IMPROVE
protocol sites used in this analysis are shown in this
map.
The details of the
correlation analysis are provided in tabular format below. The
Representative Distance (Rep. Dist.) is 103 km for this region.
Representative distances were based from exponential curve fits to the
correlation verses
distance curves.
Region
Sulfate
NO3
OMC
LAC
Soil
CM
Rep. Dist.
Sierra Nevada Range
Distance (km)
276.5
38.1
57.5
15.6
59.3
50.5
Average (Mm-1)
6.5
5.9
7.8
2.3
0.7
3.3
Weighting
0.246
0.224
0.295
0.086
0.026
0.123
Weighted Dist. (km)
67.9
8.5
17.0
1.3
1.5
6.2
103

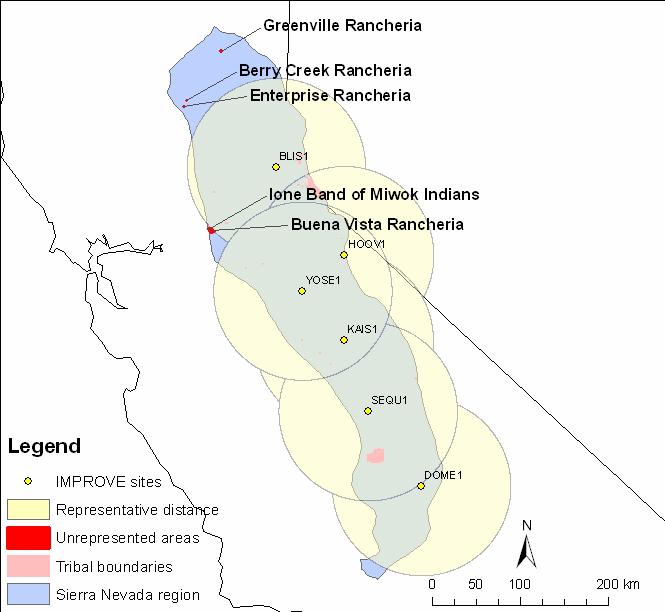

Based on a representative
distance of 103 km, four tribal areas in the region are not represented by
an IMPROVE or IMPROVE protocol site as shown in this
summary map.
